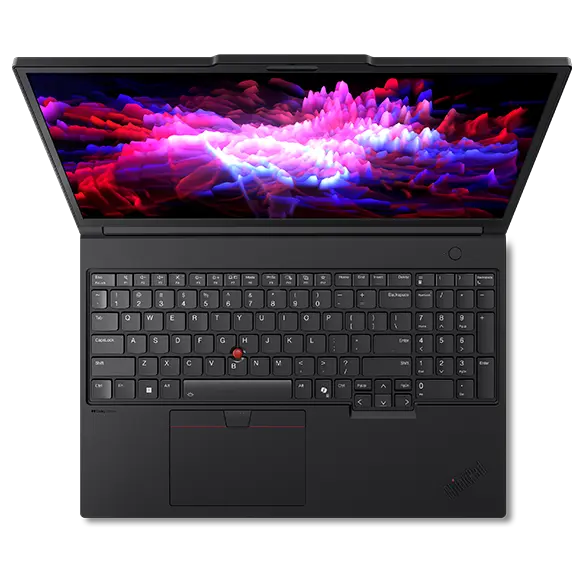

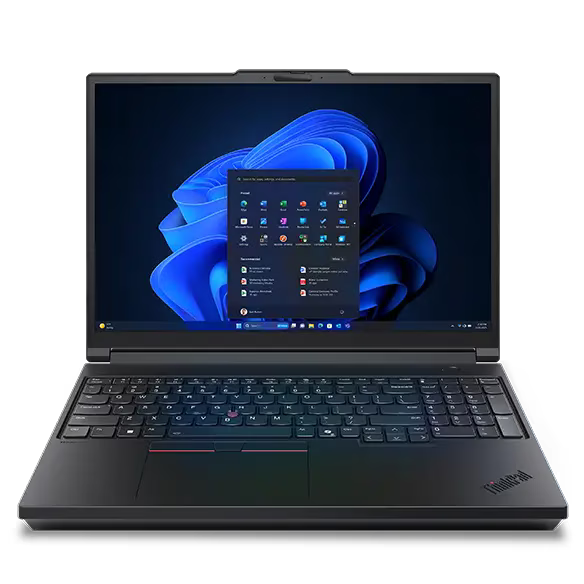

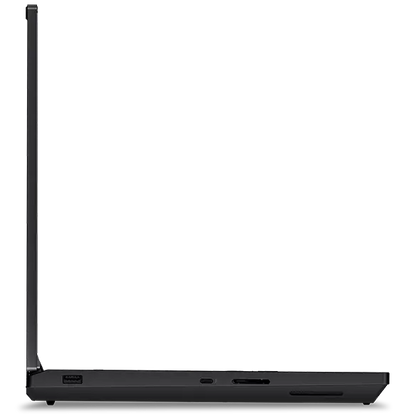

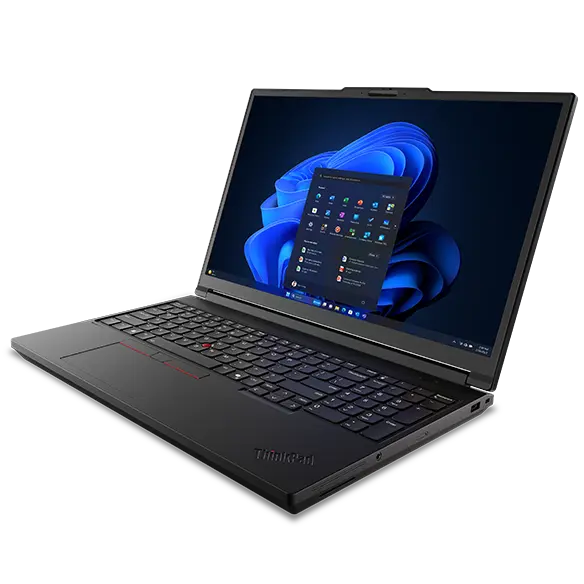

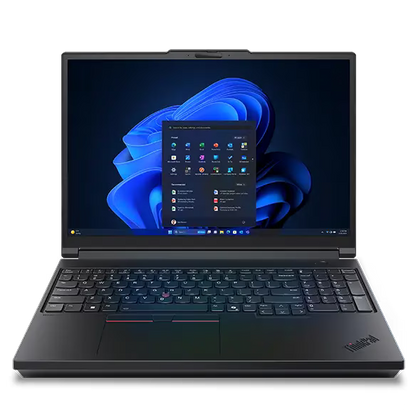

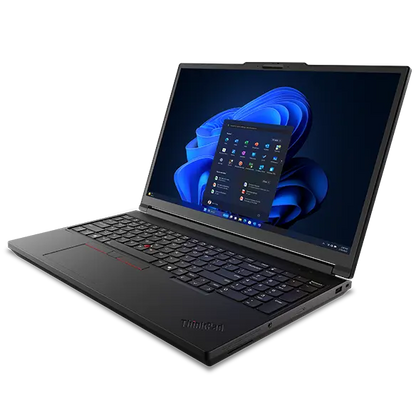

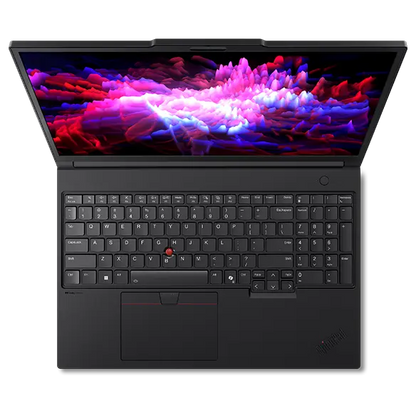

Lenovo ThinkPad P16V(21KXS08000) ULT7 155H 16GB 1TB W11P 3Y

PERFORMANCE
Processor
Intel Core™ Ultra 7 155H, 16C (6P + 8E + 2LPE) / 22T, Max Turbo up to 4.8GHz, 24MB Intel® Smart Cache
AI PC Category
AI-Ready Workstations
NPU
Integrated Intel® AI Boost, up to 11 TOPS
Graphics
NVIDIA® RTX 1000 Ada Generation 6GB GDDR6
Chipset
Intel® SoC Platform
Memory
1x 16GB SODIMM DDR5-5600 Non-ECC
Memory Slots
Two DDR5 SODIMM slots, dual-channel capable
Max Memory
Up to 96GB (2x 48GB DDR5 SODIMM)
Storage
1TB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Slot
Two M.2 2280 PCIe® 4.0 x4 slots
Max Storage Support
Up to two drives, 2x M.2 SSD
• M.2 2280 SSD up to 4TB, 2TB each
RAID Preset
None
Card Reader
SD Express 7.0 Card Reader
Audio Chip
High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers
Stereo speakers, 2W x2, Dolby Audio™ Premium
Microphone
2x, Array
Camera
FHD 1080p with Privacy Shutter
Battery
90Wh
Power Adapter
170W Slim Tip (3-pin)
DESIGN
Display
16" WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC
Touchscreen
None
Color Calibration
No Color Calibration
Pen
Pen Not Supported
Keyboard
Backlit, English
Dimensions (WxDxH)
365 x 262 x 24.66 mm (14.37 x 10.32 x 0.97 inches)
Weight
Starting at 2.22 kg (4.90 lbs)
Case Color
Black
Case Material
PC-ABS (Top), PC-ABS (Bottom)
SOFTWARE
Operating System
Windows® 11 Pro, English
Bundled Software
None
CONNECTIVITY
WLAN + Bluetooth
Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3, vPro®
WWAN
WWAN Not Supported
SIM Card
No SIM card included (nano‑SIM card slot available)
Ethernet
100/1000M (RJ-45)
NFC
No NFC

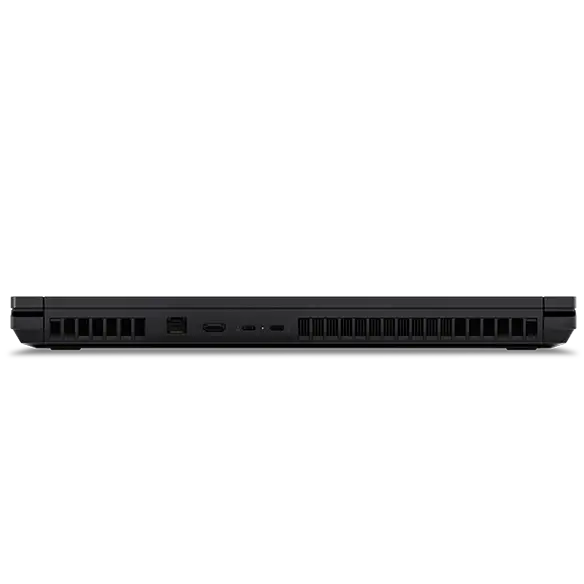

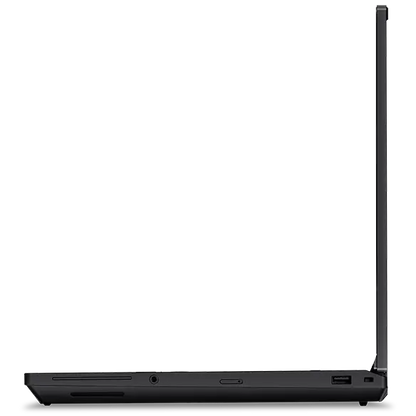

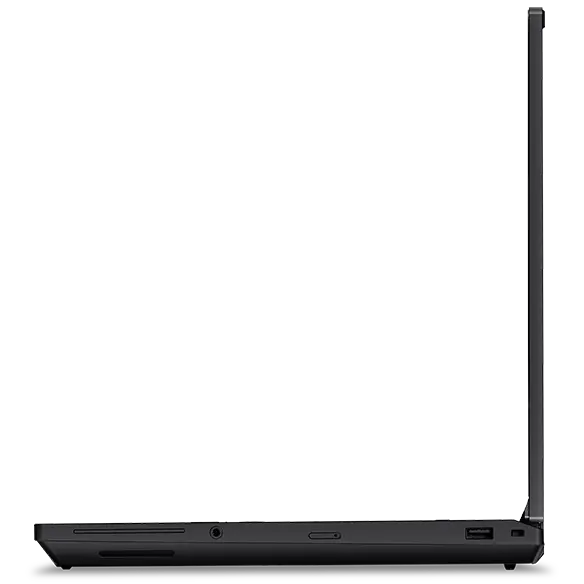

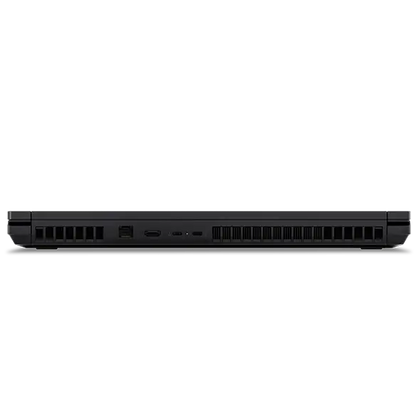

Standard Ports
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with DisplayPort™ 2.1
1x HDMI® 2.1, up to 8K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (GbE RJ-45)
1x SD Express 7.0 card reader
1x Kensington Nano Security Slot™
Optional Ports (configured)
1x Smart Card Reader
Docking
Various docking solutions supported via Thunderbolt™ / USB-C®.
For more compatible docking solutions, please visit
Docking for ThinkPad® P16v Gen 2
SECURITY & PRIVACY
Security Chip
Discrete TPM 2.0 Enabled
Physical Locks
Kensington Nano Security Slot™, 2.5 x 6 mm
Smart Card Reader
Smart Card Reader
Fingerprint Reader
Touch Style, Match-on-Chip, Integrated in Power Button
Other Security
Camera privacy shutter (camera models)
MANAGEABILITY
System Management
Non-vPro®
SERVICE
Base Warranty
3-year, Courier or Carry-in with 1-year Battery
Included Upgrade
3Y Premier Support Upgrade from 3Y Courier/Carry-in
ACCESSORIES
Bundled Accessories
None
CERTIFICATIONS
ISV Certifications
Please visit ISV certifications for Lenovo® Workstations
Green Certifications
ENERGY STAR® 9.0
EPEAT™ Gold Registered
RoHS compliant
TCO Certified, generation 9
Mil-Spec Test
MIL-STD-810H military test passed
