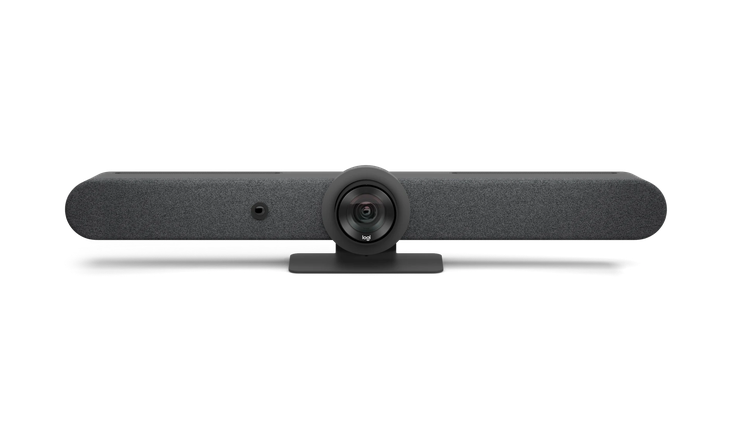

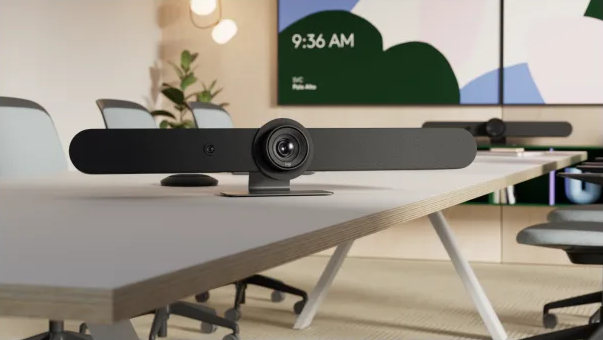

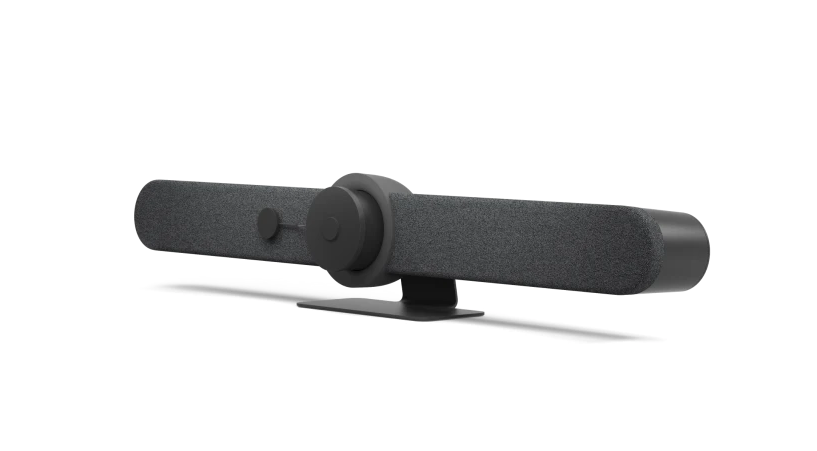

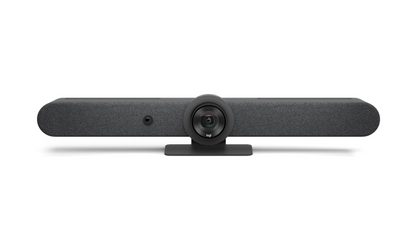

Logitech Rally Bar (960-001745)

• 960-001745

Rally Bar

• Height: 164 mm
• Width: 910 mm
• Depth: 130.5 mm
• Weight: 7.08 kg

Lens

• Depth: 28.8 mm

Certifications & Compatibility

• For the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certifications
• Microsoft Teams Rooms on Android ¹For medium sized rooms
• Microsoft Teams Rooms on Windows ²For medium sized rooms

General Specifications

• Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform
• Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
• Device Management: Logitech Sync
• Displays Supported: 2
• Display Resolution: Up to 1080p
• Network Protocol Support: IPv4, IPv6
• Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

Camera

• Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
• Pan: Motorized ±25°
• Tilt: Motorized ±15°
• Zoom: 15X HD zoom (5X optical and 3X digital)
• Diagonal Field of View: 90°
• Horizontal Field of View: 82.1°
• Vertical Field of View: 52.2°
• Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical

Speakers

• Drivers: 2x 70 mm
• Sensitivity: 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
• Rated Power: 8W
• THD: 1kHz < 2% at 1W
• Speaker Sampling Rate: 48 kHz
• Impedance: 4 Ohms

Microphones

• Frequency Response: 90Hz – 16kHz
• Sensitivity: >-36dBFS +/-1 dB @ 1Pa
• Microphone data rate output: 48KHz
• Pickup Range: Up to 7 m
• Beamforming Elements: 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams
• Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
• Noise suppression: AI based de-noising algorithm
• Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms

RightSense™ Technologies

• RightLight: Renders natural skin tones for each participant
• RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
• RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
• Grid View: Detects and frames all meeting participants in order to create equitable hybrid meeting experiences. To learn more, visit logitech.com/prosupport/gridview

Interfaces

• HDMI Out: 2 (up to 1080p)
• HDMI In: 1
• USB: 3x Type A, 1x Type C
• Network: 10/100/1G Ethernet
• WiFi: 802.11a/b/g/n/ac
• External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)

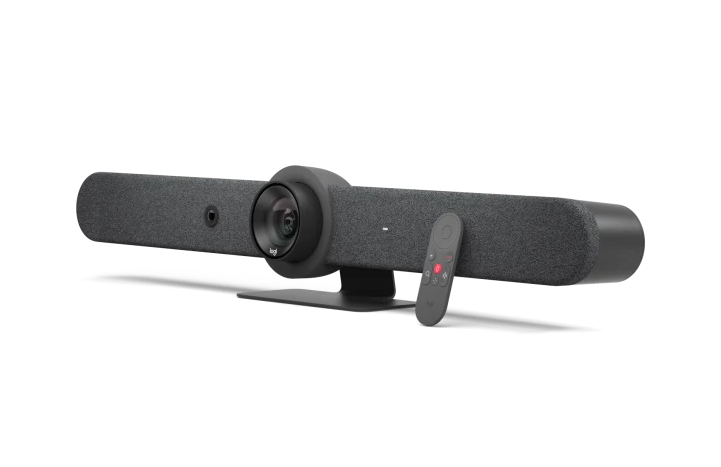

• Remote Control: Bluetooth® Low Energy

Power & Cables

• Power supply: Auto-sensing
• Operating Voltage/Power: 100-240V, 19V, 4.74A
• Power Supply Dimensions: 127 mm x 51 mm x 30 mm
• DC Cable: 1.5 m
• AC Cable: 1 m
• HDMI 1.4 Cable: 2 m
• USB A to USB C 3.0 Cable: 2.2 m

Environmental

• Operating Temperature: 0 to 40°C
• Storage Temperature: -40 to 70 °C
• Humidity: 10 to 95%
• BTU/hr: 57 idle, 64 in meeting

Security

• Full Disk Encryption: AES-128
• Data Encryption: Symmetric Keys, PKI
• Device Identity: Protected by device attestation
• Device Access: Authenticated using API
• Key Protection: Arm TrustZone, RPMP

Accessories

• Mounts: Wall Mount for Video Bars, TV Mount for Video Bars
• Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
• Connectivity: Logitech Strong USB (10m, 25m, 45m)

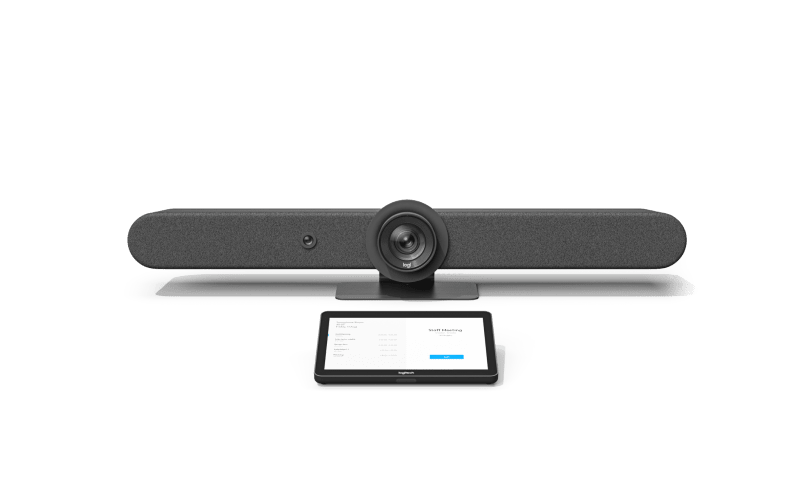

• Touch Controller: Logitech Tap and Tap IP ³Compatibility may vary, see www.logitech.com/support/tap-compatibility for the latest information
